Steamship Trafik

Steamship Trafik
from Hjo

By

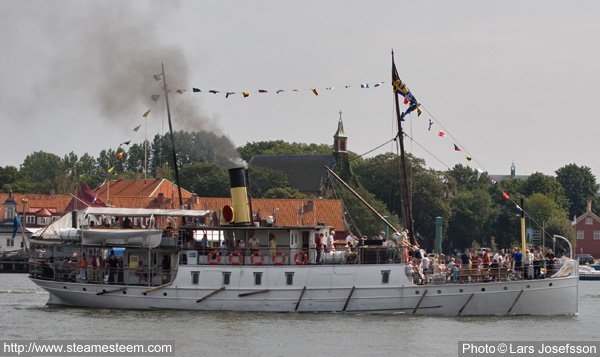

Steamship Trafik from Hjo
Built in 1892 at Bergsunds Mek. Verkstad, Stockholm Sweden
Call sign Measures in meter Tonnage Engine
kW 		Speed
Knots
Length Beam Draught Gross Net
SGYK 31.66 6.28 2.7 162 97 175 11
Scotch Marine Steam Boiler with two funaces.
Compound engine with Stephenson's link-motion.

Steamship Trafik at quay in Hjo
Steamship Trafik at quay in Hjo



The engine room aboard Steamship Trafik

Compound steam engine
The engineroom aboard Steamship Trafik
The starboard side of the compound steam engine.
To the right the two-fire-tube scotch marine boiler.



Steam engine low pressure cylinder
The low pressure cylinder with its steam chest and the quadrant.
To the left, lubricator, plunger pump and air pump.



Steam engine manoeuvering place
The maneuvering place aboard the Steamship Trafik
