Steamship Engelbrekt

Steamship Engelbrekt
from Leksand


Steamship Engelbrekt
Built in 1866 at Lindholmens Varv in Gothenburg Sweden
Call sign Measures in meter Tonnage Engine
Length Beam Draught Gross Net
SEVZ 24.34 4.51 1,75 75 22 66
Scotch Marine Steam Boiler with one furnace. 9 bar
Compound engine with Stephenson's link-motion.


The engine room aboard Steamship Engelbrekt

Scotch marine steam boiler with one furnace
The Steamship Engelbrekt has a Scotch marine boiler with one furnace.

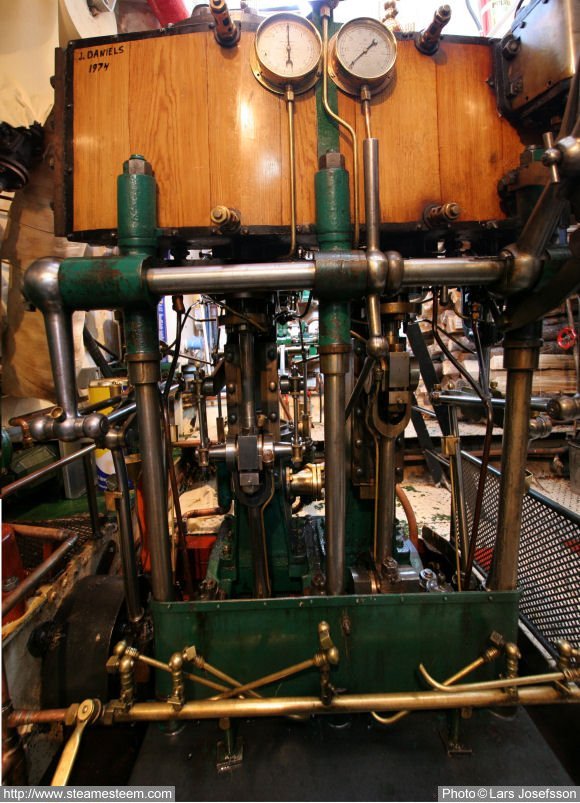

Compound steam engine
The Steamship Engelbrekt's compound steam engine with Stephenson's link-motion.


Compound steam engine top
The top of the Steamship Engelbrekt compound steam engine. Note the lubricating cups with two cocks and an oil-container between them.
Turn the upper cock and fill the bulb with lubricating-oil, then close it and turn the lower cock so the lubricating-oil can trickle into the cylinder. Using a wet rag to cool down the oil-bulb will make the procedure easier to perform.

Engelbrekt, 1390 -1436, a Swedish rebel leader and later deputy head of State.
