Scotch marine boilers

Scotch marine steam boilers


Scotch single-ended fire tube marine steam boiler
The single-ended return tube Scotch marine boiler consists of a cylindrical boiler shell of large diameter and short length, provided with two or more furnaces i.e. corrugated fire-tubes. Each furnace ends in a combustion chamber, surrounded by water. The gases pass through a bank of flue-tubes from the combustion chamber to the smoke-box at the boiler front.

Scotch steam boiler

A Scotch marine boiler contained large quantity of water, about six times more than a water-tube boiler, and was therefore slow to steam up and to change the output capacity. Due to the Scotch boiler's stiff construction it required also a long steaming up period to avoid leaks caused by thermal expansion of the material.
The Scotch boiler was a very common marine boiler, used in steamships from many nations.

Many old steamships still sails with Scotch marine boilers, some of them with new-built old fashion Scotch boilers.


Double-ended Scotch marine steam boilers
Scotch double-ended marine steam boiler

These types of boilers were normally used in ships with many Scotch boilers. Space was saved even though two stokeholes were required. Normally a pair of furnaces shared one combustion chamber.
In older double-ended boilers were often vertical Galloway tubes built into the combustion chamber. They were intended to promote water circulation in the boiler and thus contribute to reducing tensions in the material.
Twenty-four double-ended Scotch marine steam boilers with three furnaces at each end and five single-ended Scotch boilers with three furnaces each were installed onboard R.M.S. Titanic. Electrically operated stoking indicators were used in the stokeholds to prevent that opposite furnace doors were open at the same time. These indicators also helped to minimize the total number of simultaneously open boiler furnace doors.

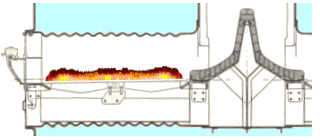

Fire tube for bouble-ended Scotch marine steam boiler
When the furnace door was open, cold air could hit the combustion chamber's opposite wall and cause tube leakage. To prevent that, a high baffle of firebrick was installed in the middle of the combustion chamber.


The three pass Scotch marine steam boiler
Scotch three-pass-boiler with dry-back

The flue gases passes three times through the water space in stead of two times that was common in the old Scotch boilers. It is a further development of the Scotch fire tube boiler, often referred to as the Scotch boiler. Scotch three-pass boiler
