Steamboat Munter

Steamboat Munter
from Vrena

By

Steambosat Munter moored
Built in 1879 at Lidköpings Mekaniska Verkstad
Call sign Measures in meter Tonnage Engine
kW 		Speed
Knots
Length Beam Draught Gross Net
  12.10 2.93   7,5   6 6
Vertical fire tube steam boiler with one furnace.
Single cylinder steam engine with piston slide valve and Stephenson's link-motion.

Steamboat Munter
Steamboat Munter moored in Pilgrimsbo, Vrena.

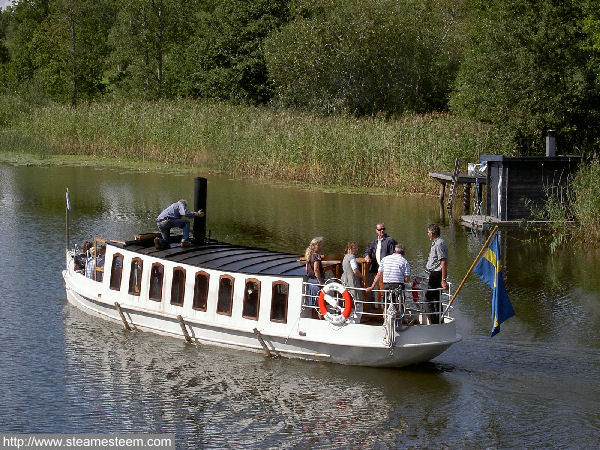

The funnel is about to be folded so the steamboat Munter can pass under a bridge
The funnel is about to be folded so the steamboat Munter can pass under a bridge.

Steamboat Munter's salonThe cozy lounge aboard the Steamboat Munter.



The engine aboard Steamboat Munter

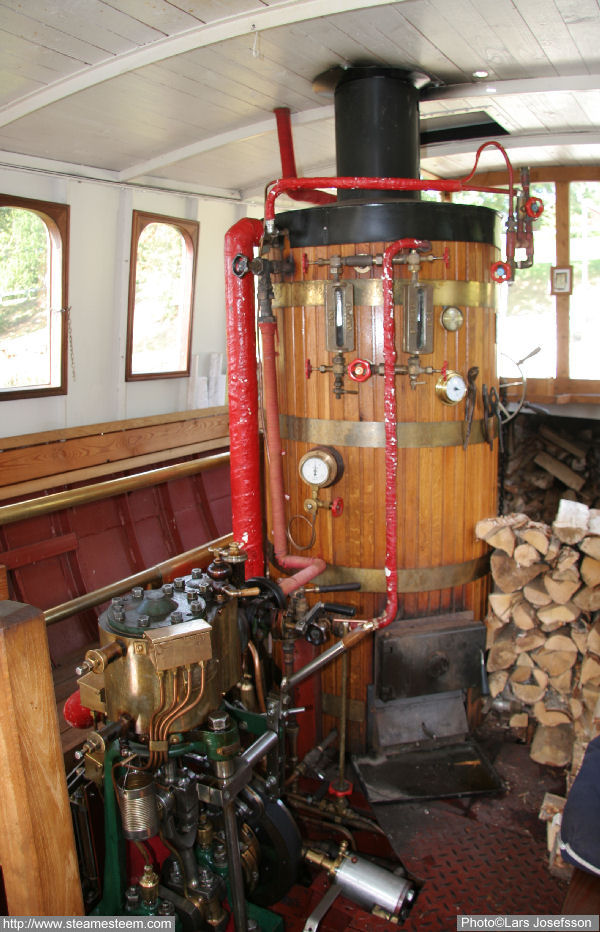

Steamboat Mubter's bloiler
The steamboat Munter's vertical fire tube steam boiler with one furnace.

Steamboat Munter's steam engine
The single cylinder steam engine aboard Steamboat Munter.
The device located at the bottom left of the picture is a pump, to pump out the bilge water from the hull and the horizontal cylinder is a feedwater pump for the boiler.
